Description
Based on TCP/IP technology, the product supports the 48V standard PoE, making it more flexible for installation.
Main Features
• Linux OS

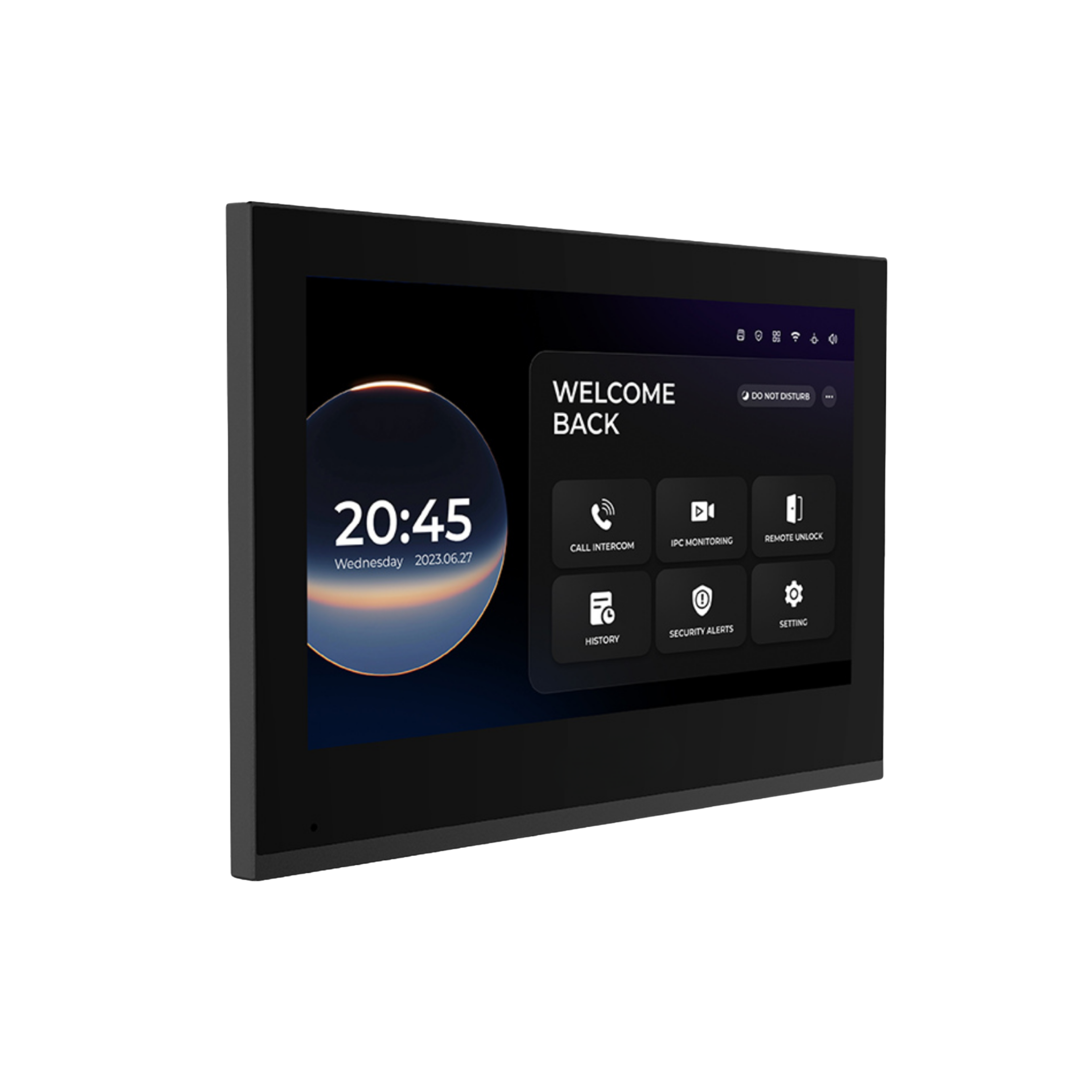

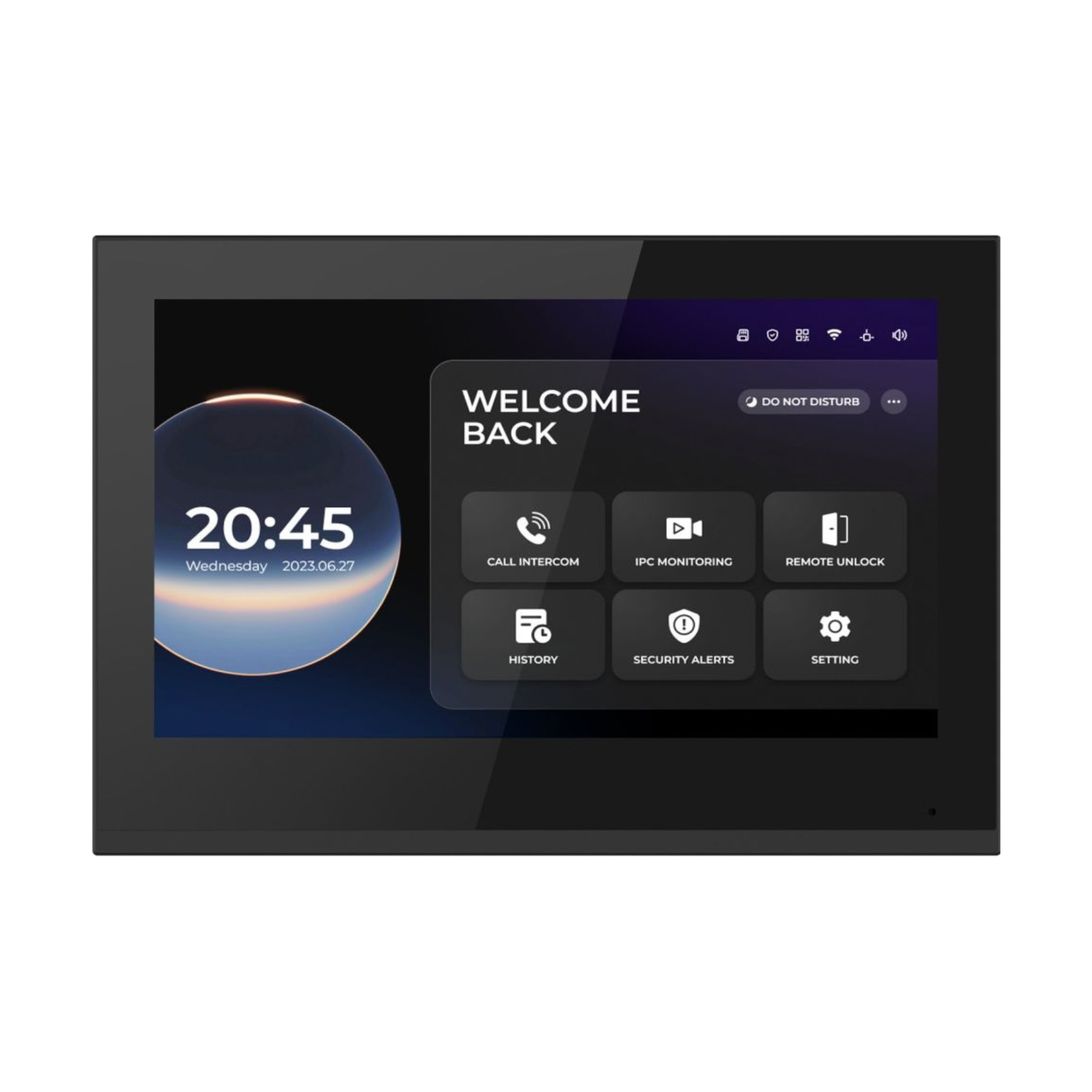

• 7-inch TFT LCD Capacitive Touch Screen
• 1024×600 screen resolution
• RAM: 128MB , Flash: 32MB
• Support 2.4GHz Wi-Fi, and Ethernet network
• Support Tuya app, and SmartLife app
• With 1-Relay output to control the NO/NC door lock
• Multi-unit synchronization (Villa & Apartment system in one)
• Villa System Capacity: 1 main indoor unit +6 extension units +4 outdoor units
• Max support 128GB TF Card
• Communication mode: RJ45(TCP/IP), RS485, WiFi
• Snapshot and Video record for calls, IP Camera integration
• Simple one-click call-mute function on the main UI
• Powered by 48V PoE or DC 12V
• 1-Channel Doorbell
• 4-Channel wired Alarm input
• Support OTA update
Details
| Colour | Black |
|---|---|
| Material | PET front panel +ABS shell |
| Installation | Surface mount |
| Dimension (H.W.D) | 180 x 122.5 x 22 MM |
