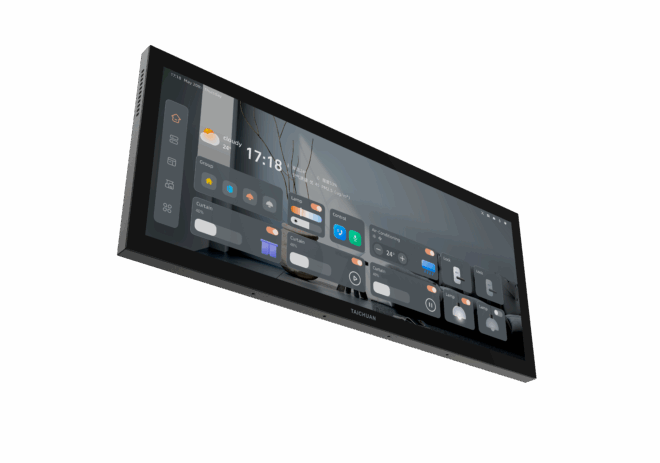

Description

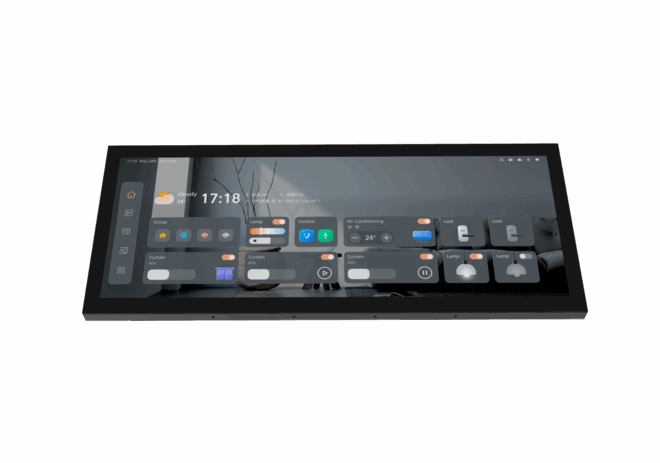

The All-in-One Smart Control Screen integrates Smart Home control, Intercom, and Security control into one.
All bound Tuya devices can also be controlled when the network is disconnected from the smart control screen.
Main Features
• Android 11 OS
• 12.3-inch IPS LCD Capacitive Touch Screen
• 1920×720 screen resolution
• RAM: 2GB , ROM: 16GB / (Optional RAM: 4GB , ROM: 32GB)
• CPU: Quad-core ARM Cortex™-A55 @ 1.8GHz
• Built-in Tuya ZigBee 3.0 gateway with Tuya PID and License
• Built-in Bluetooth gateway

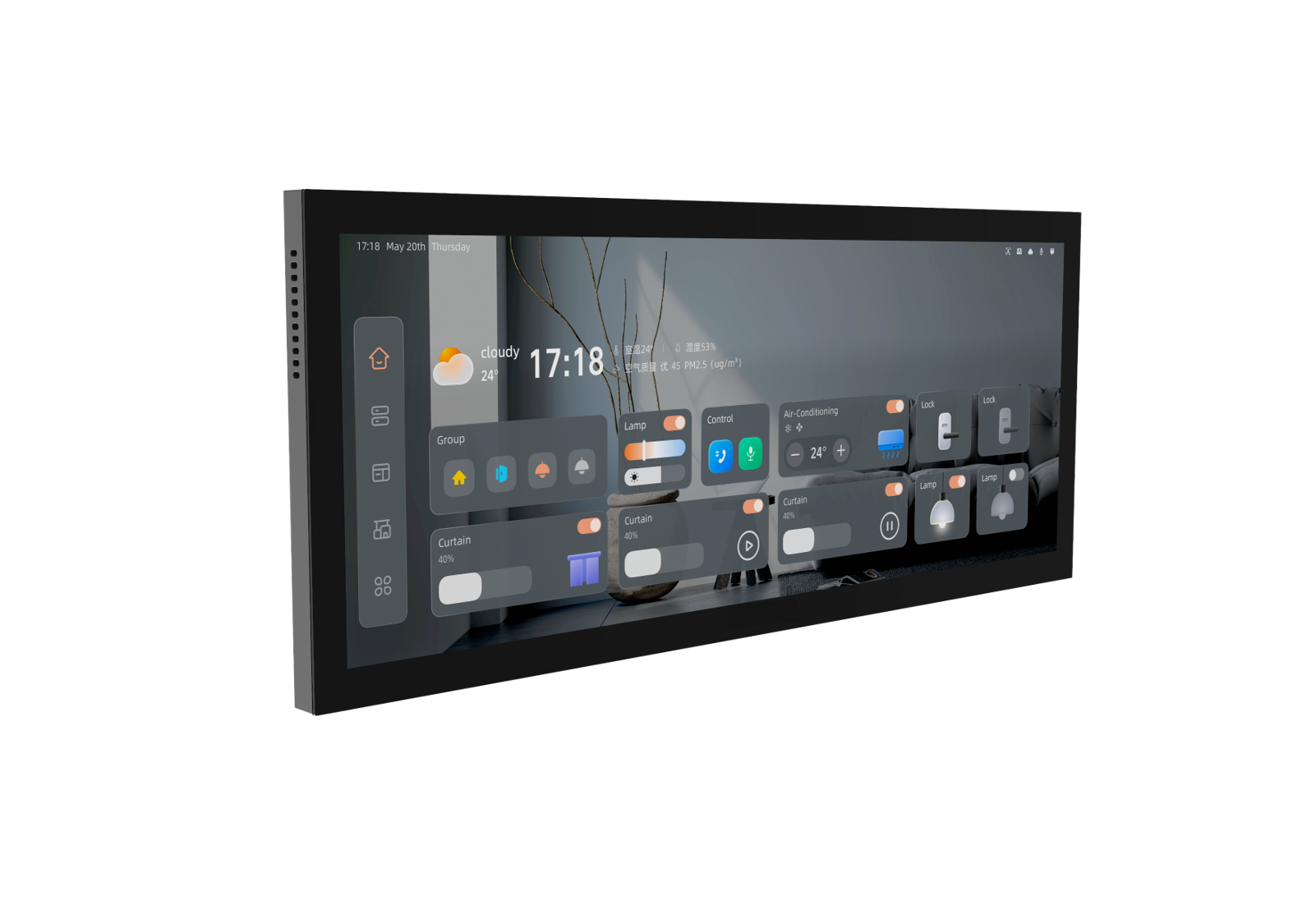

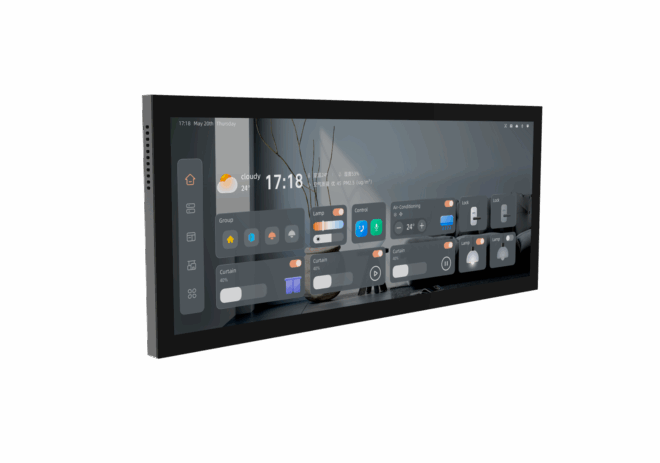

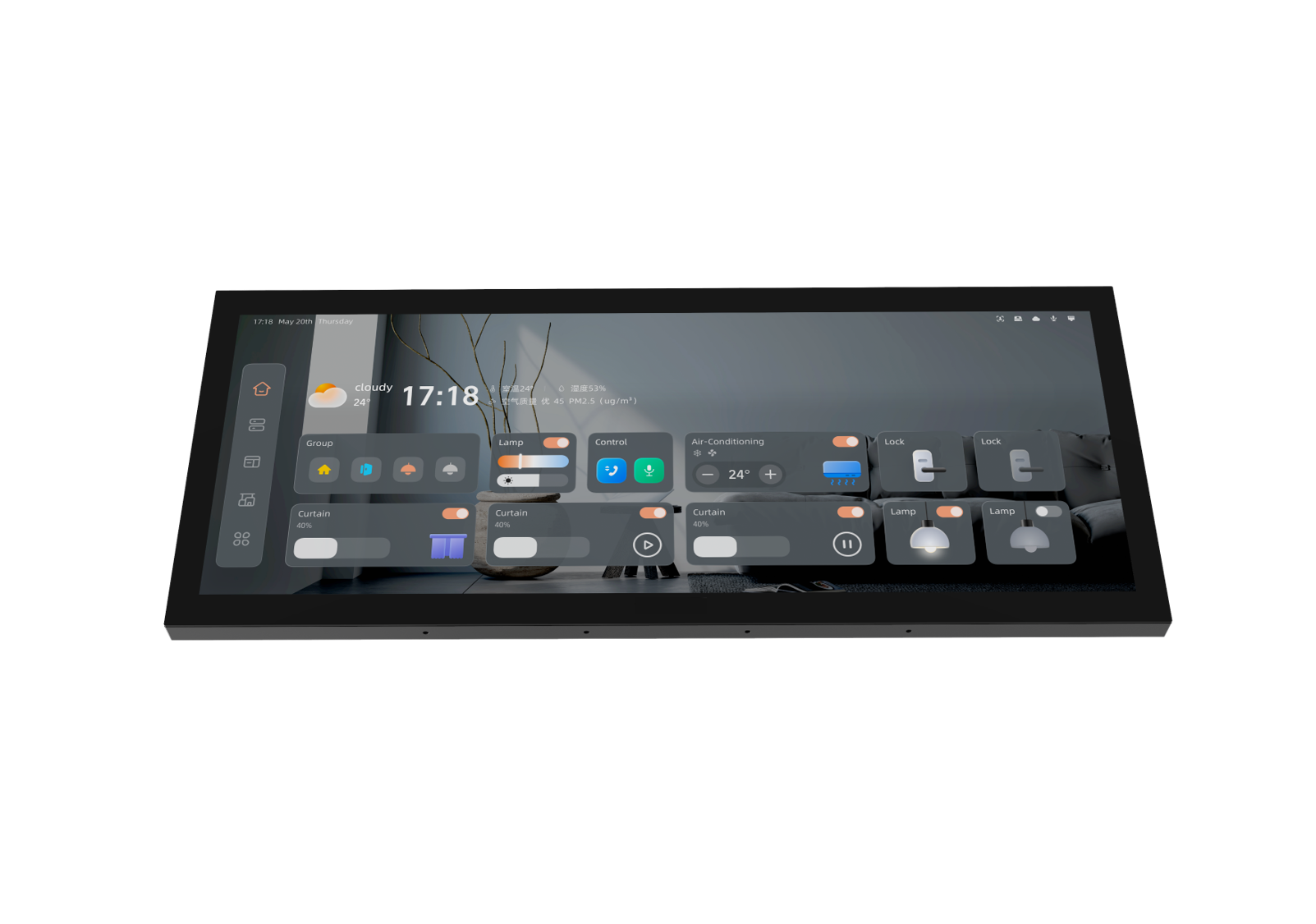

• Home automation with visualized interfaces
• Configurable homepage menu to meet different user needs
• Support 2.4GHz & 5GHz Dual-band Wi-Fi, and Ethernet network
• Support Tuya app, SmartLife app, or 3rd-party apps
• Multi-unit synchronization (Villa & Apartment system in one)
• Communication: 2*RJ45(TCP/IP), 2*RS485, WiFi, ZigBee, BLE 5.0
• Expanded Interface: 4*Relay, Doorbell, 8CH Alarm input, SD card slot
• Built-in 4-Gang Relays to control lighting
• Support up to 128 ZigBee sub-devices
• Whole-house up to 200 (ZigBee+WiFi+Bluetooth) sub-devices
• Integrated Home automation, Video Intercom, Security Control in one
• Powered by 48V PoE or DC 12V
• Support OTA update

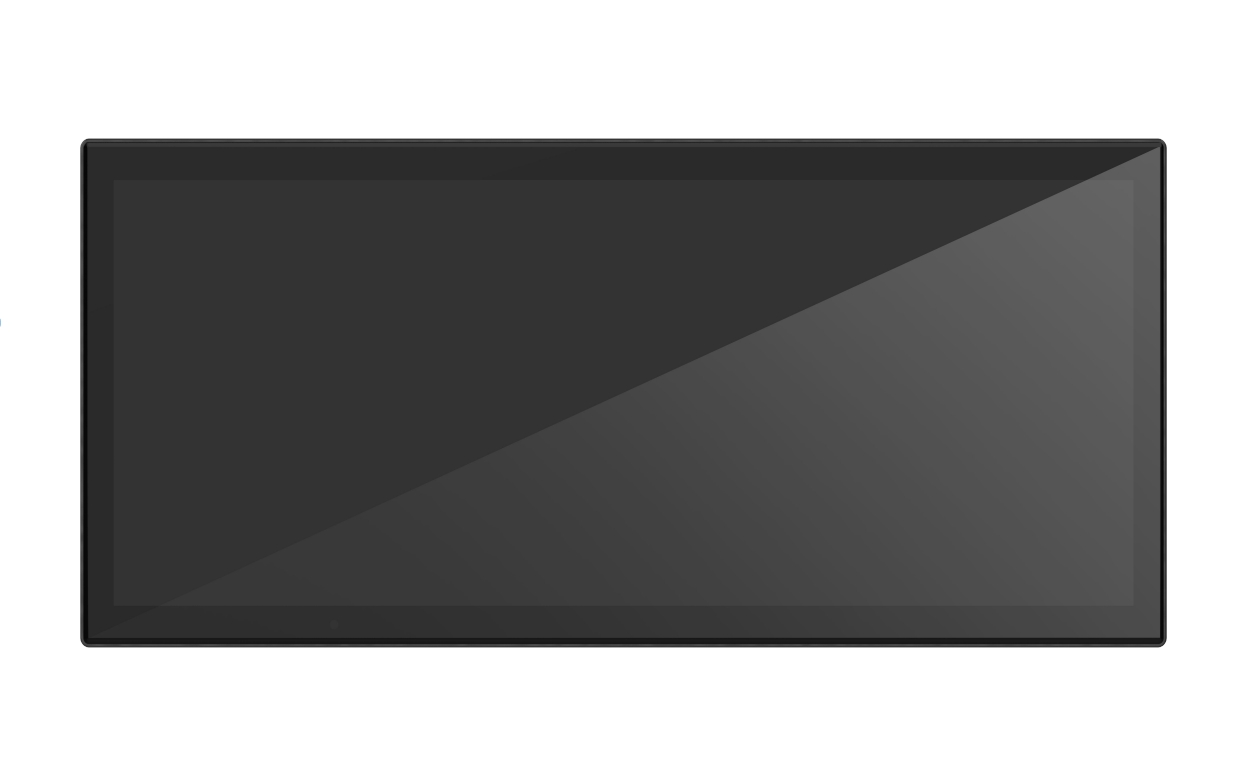

• Proximity Sensor enables Auto screen on
• Dual*86 Box + Magnetic suction installation
Details
| Colour | Black |
|---|---|
| Material | Tempered Glass Panel + Metal Body + ABS bottom shell |
| Installation | Dual*86 box + Magnetic suction |

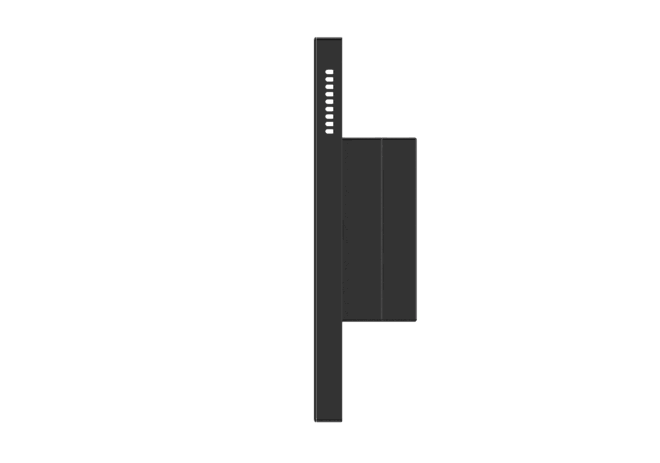

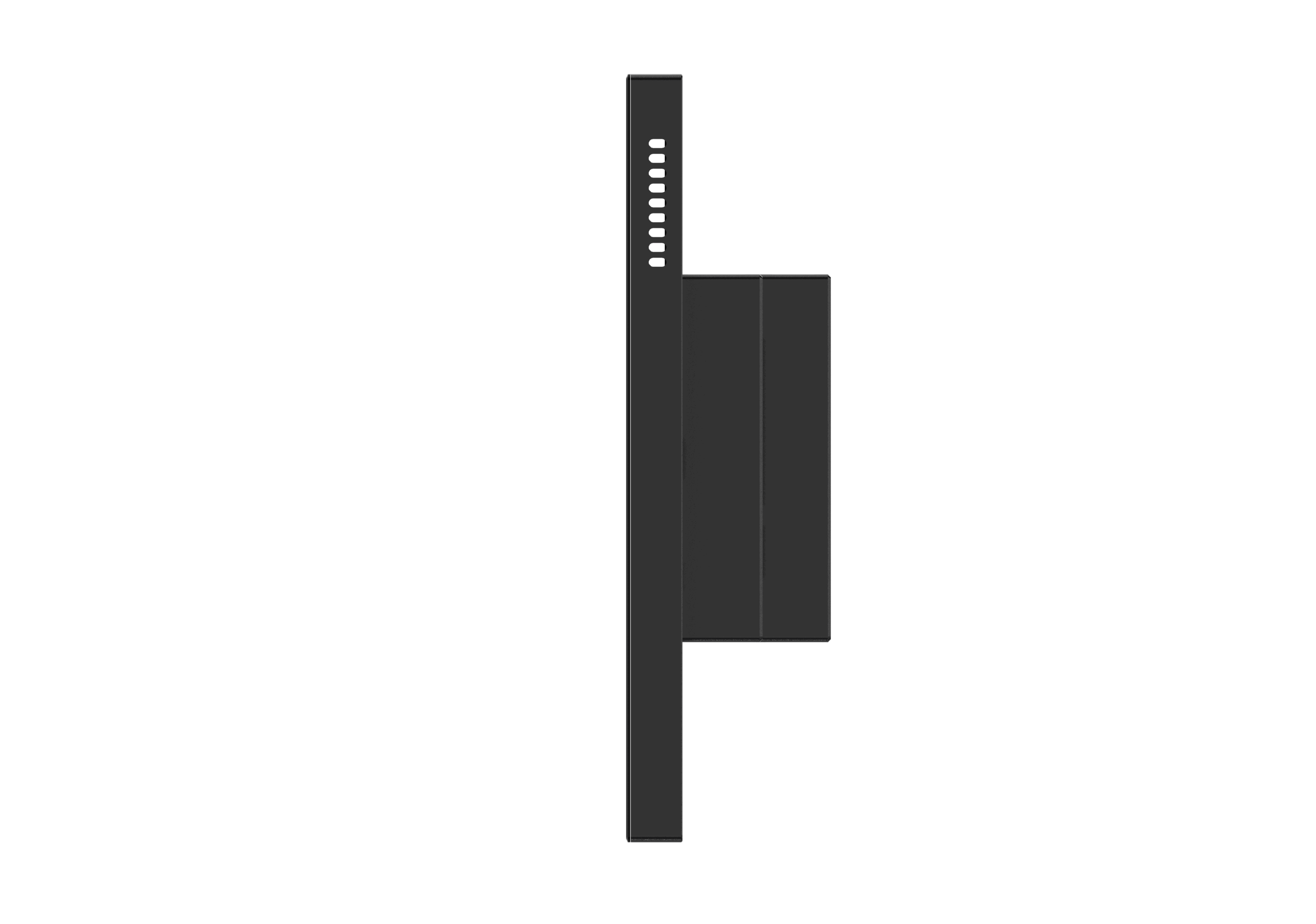

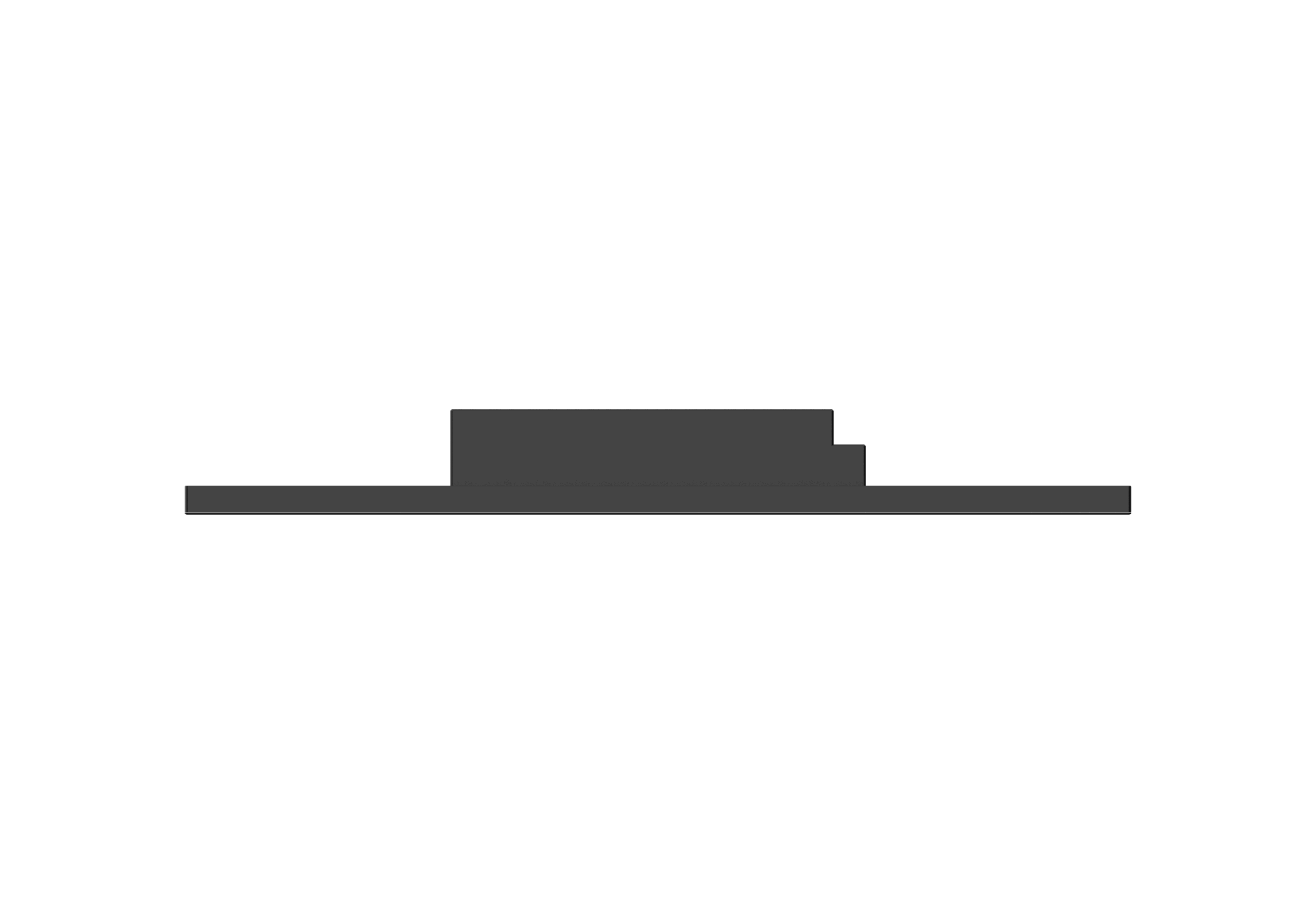

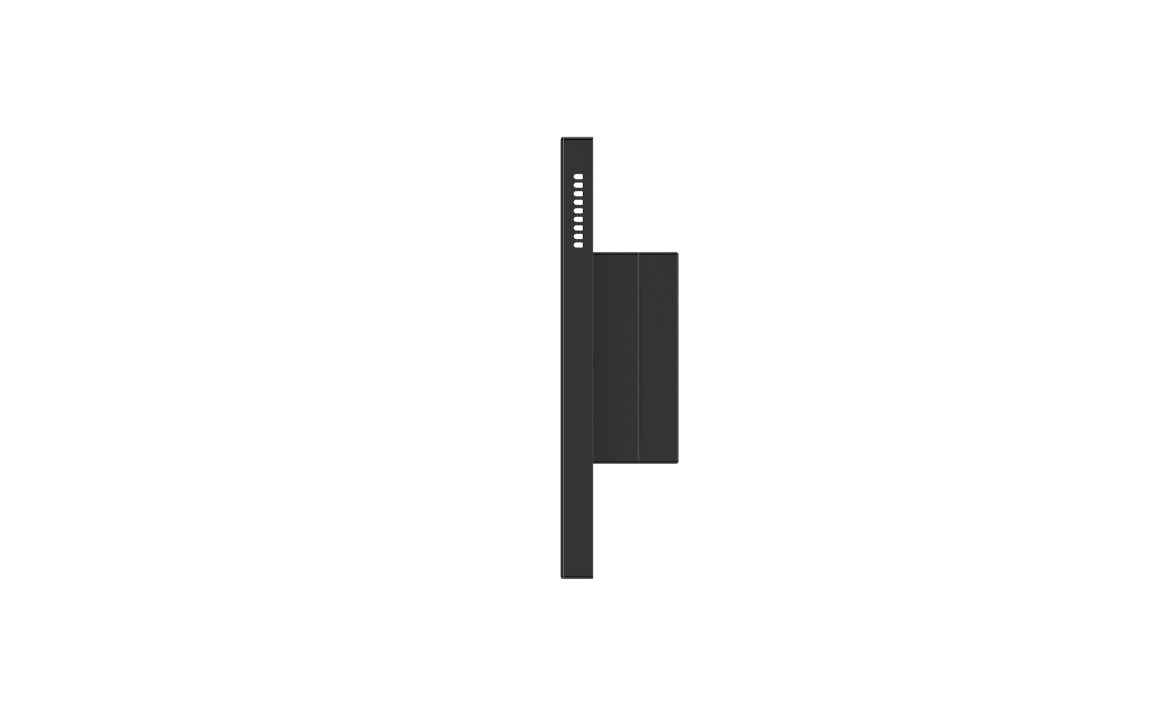

| Dimension (H.W.D) | 129×309×9.5 MM |
