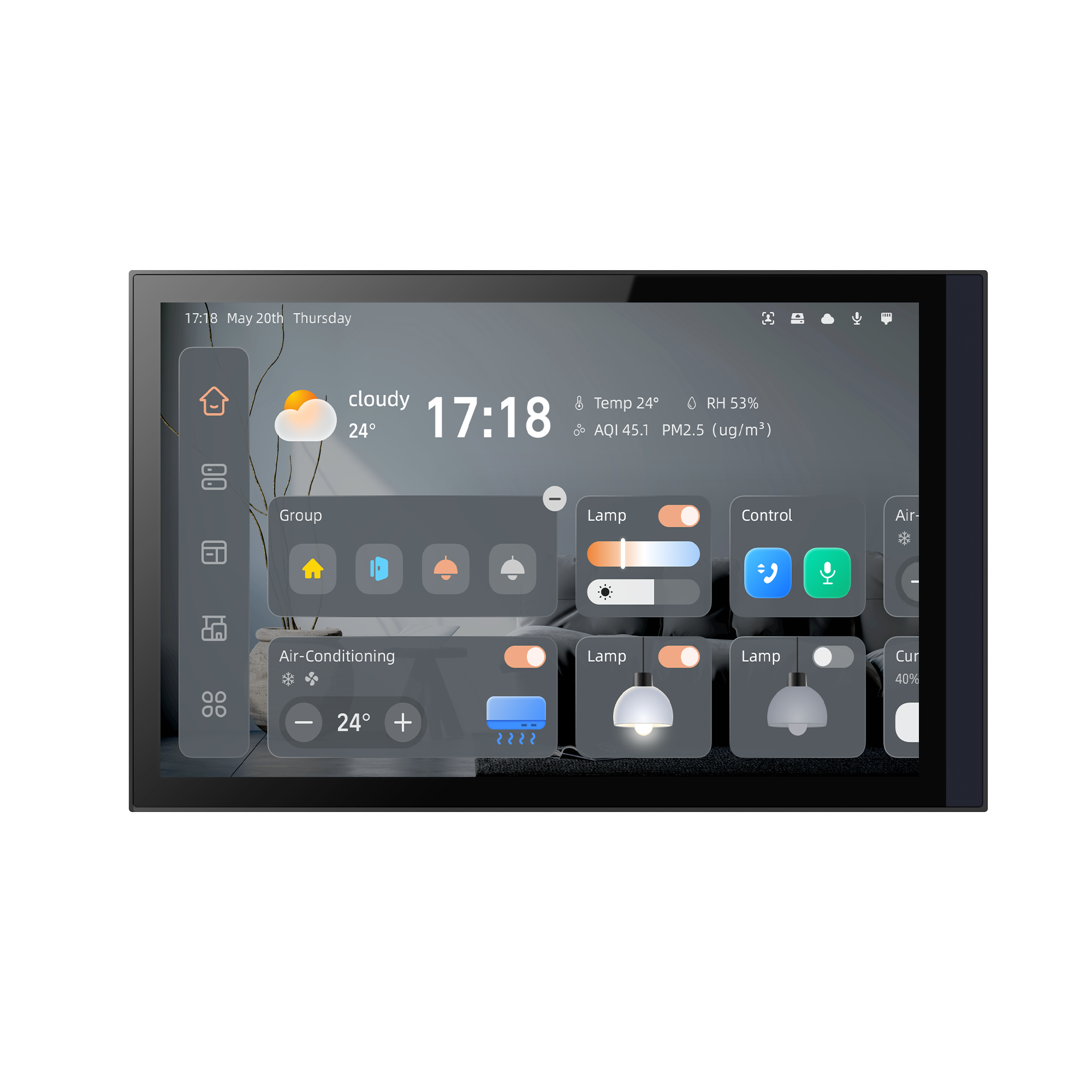

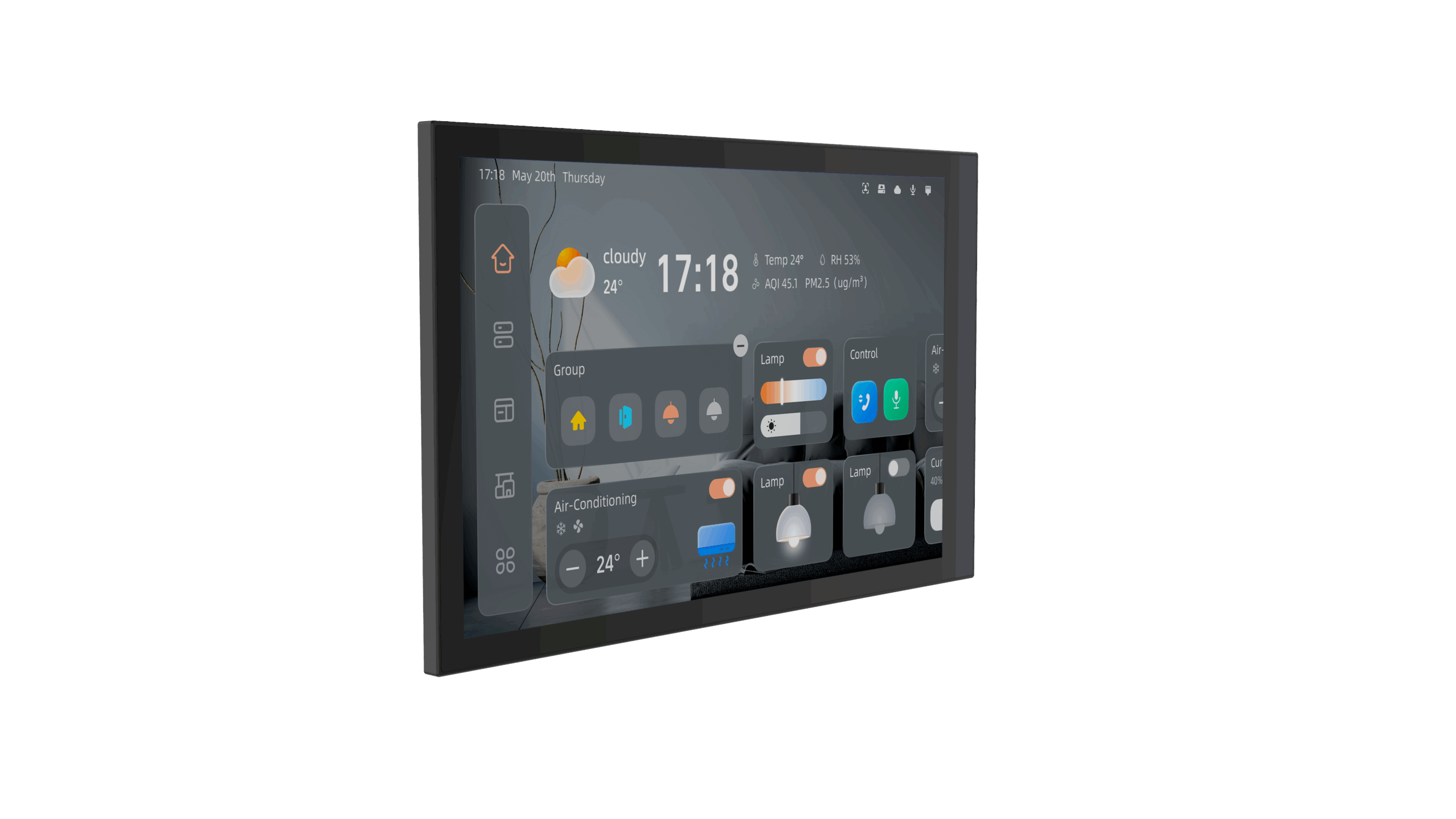

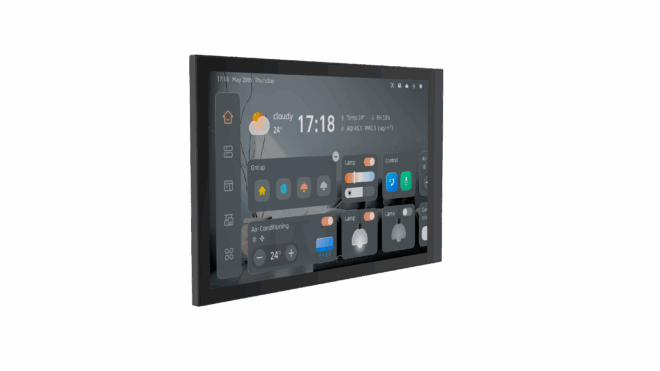

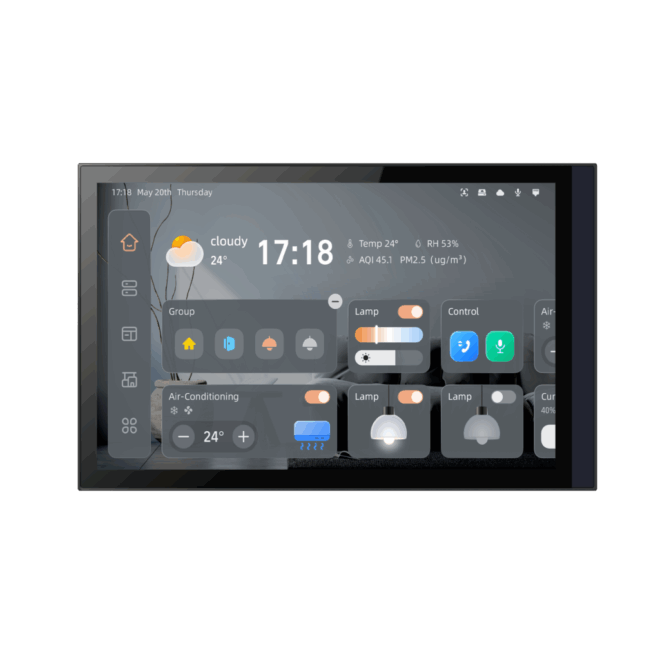

Description
The All-in-One Smart Control Screen integrates Smart Home control, Intercom, and Security control into one.
All bound Tuya devices can also be controlled when the network is disconnected from the smart control screen.
Main Features
• Android 10 OS
• 10-inch IPS LCD Capacitive Touch Screen
• 1280×800 screen resolution
• RAM: 2GB , ROM: 8GB
• CPU: Quad-core ARM Cortex™-A53 @ 1.5GHz
• Built-in ZigBee 3.0 gateway with Tuya PID and License
• Home automation with visualized interfaces
• Configurable homepage menu to meet different user needs
• Support 2.4GHz Wi-Fi, and Ethernet network
• Support Tuya app, SmartLife app, or 3rd-party apps
• Multi-unit synchronization (Villa & Apartment system in one)
• Communication: RJ45(TCP/IP), RS485, WiFi, ZigBee
• Expanded Interface: Doorbell, 8CH Alarm input, SD card slot
• Support up to 128 ZigBee sub-devices
• Whole-house up to 200 (ZigBee+WiFi) sub-devices
• Integrated Home automation, Video Intercom, Security Control in one
• Powered by 48V PoE or DC 12V
• Support OTA update
Details
| Colour | Black |
|---|---|
| Material | Glass panel + ABS body + ABS shell |
| Installation | Surface mount |

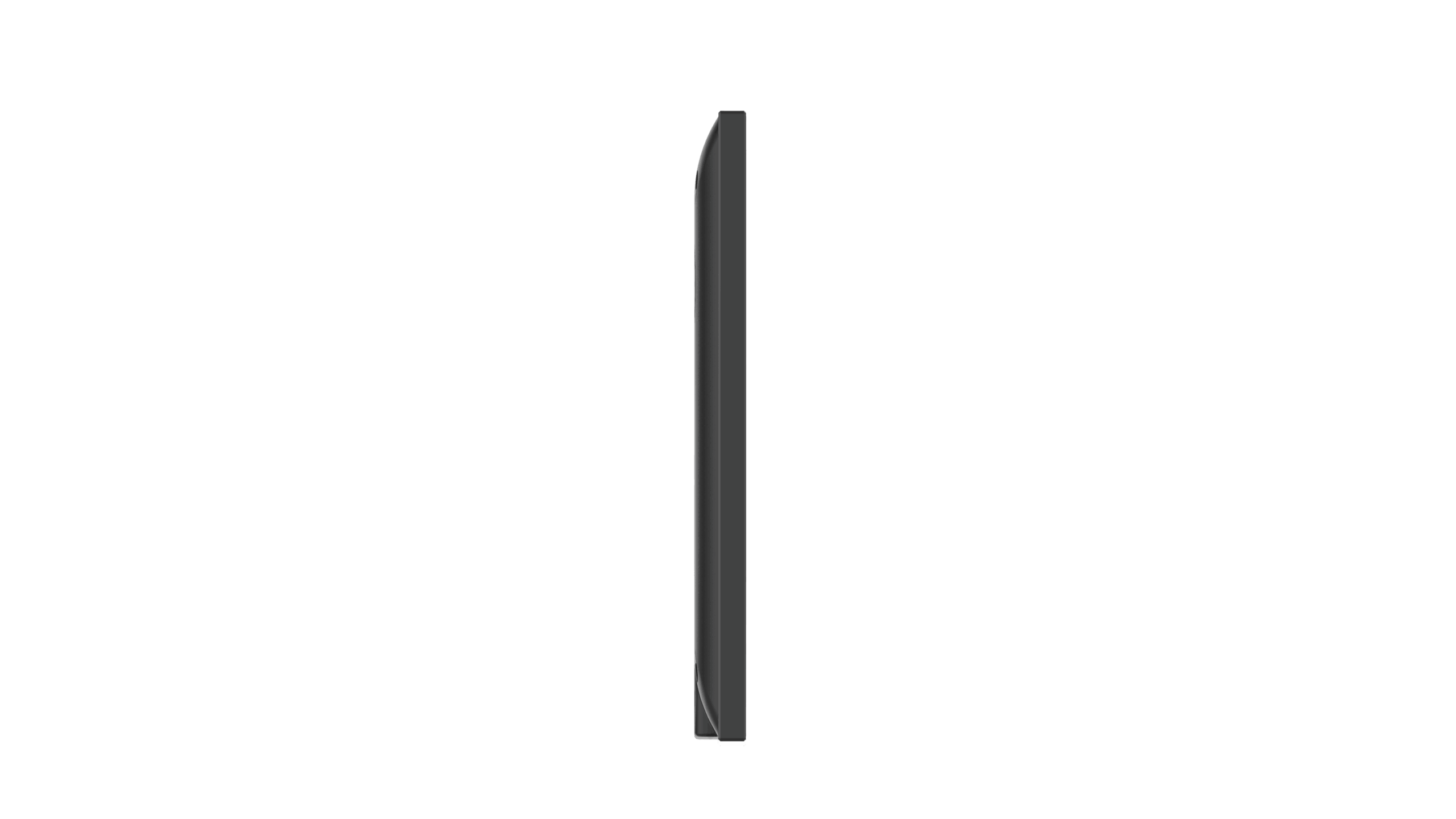

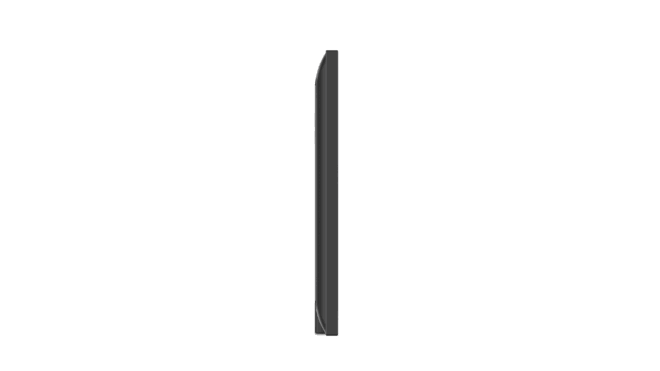

| Dimension (H.W.D) | 155×246×12 MM |
