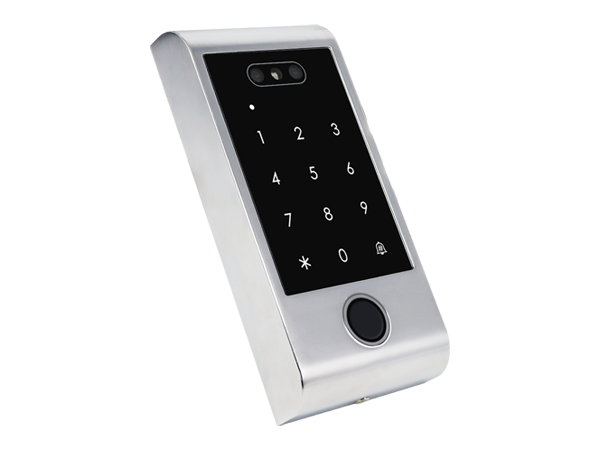

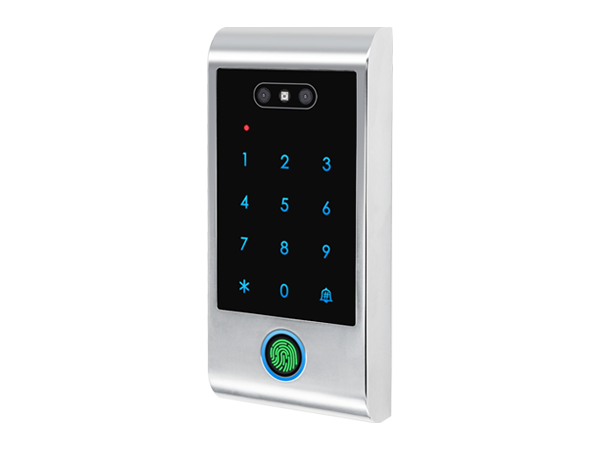

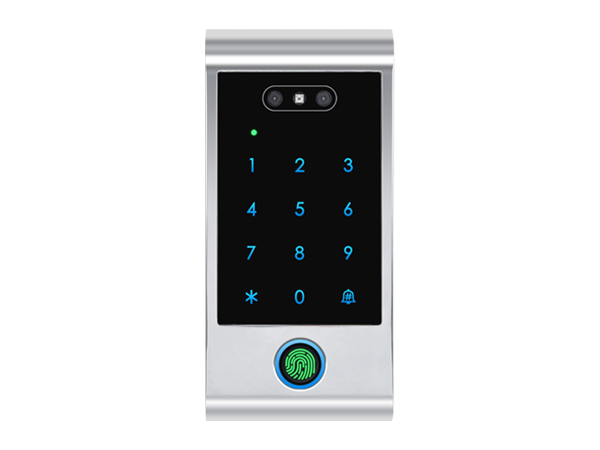

Description
The product is suitable for Small Places such as homes, independent offices, shops, warehouses, industrial parks, and other scenarios.
Main Features

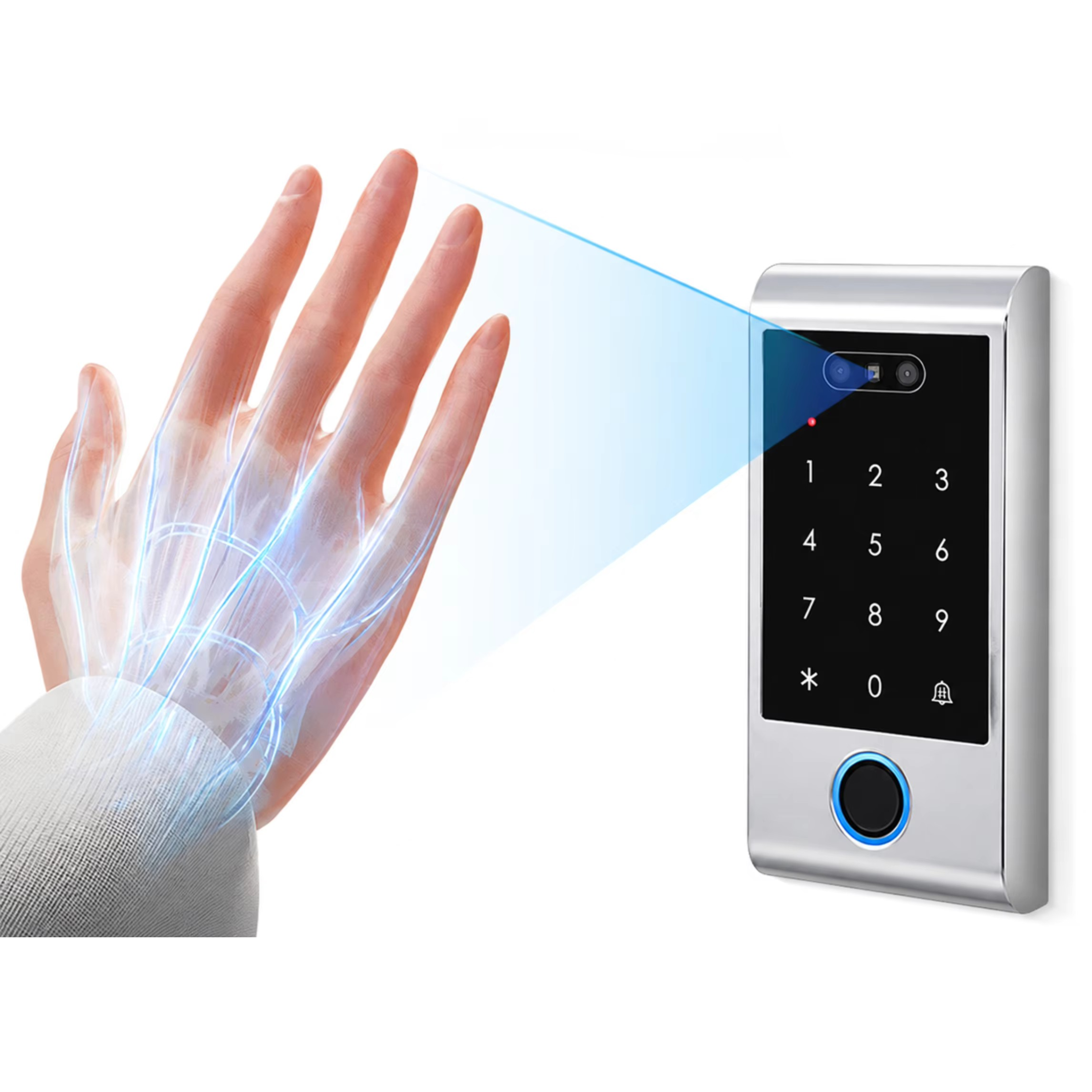

• Access mode: APP, Face, Palm, Fingerprint, Card, PIN
• 5700 User Capacity (100 Face+100 Palm+500 Fingerprint+5,000 Card/PIN), 500 APP users
• Touch keypad + Capacitive fingerprint sensor
• Card type: EM+Mifare Card
• Can set time restrictions for users
• Temporary PIN (One-time or Period), 4-6 digit PIN
• Add / Delete users via the APP
• EM card: Wiegand 26~44 bits input & output
• Mifare card: Wiegand 26-44 bits, 56bits, 58bits input & output
• Relay: 1 (NO, NC, COM)
• Interface: Relay output, Exit button, Alarm, Door contact, Wiegand input/output
• IP66 Waterproof
• DC 12~18V
• Physical: Zinc alloy (Metal)
• Color: Silver & Black
• Dimensions: 140 x 68 x 25 mm
Details
| Colour | Silver+Black |
|---|---|
| Material | Metal |
| Installation | Surface mount |
| Dimension (H.W.D) | 140 x 68 x 25 MM |
