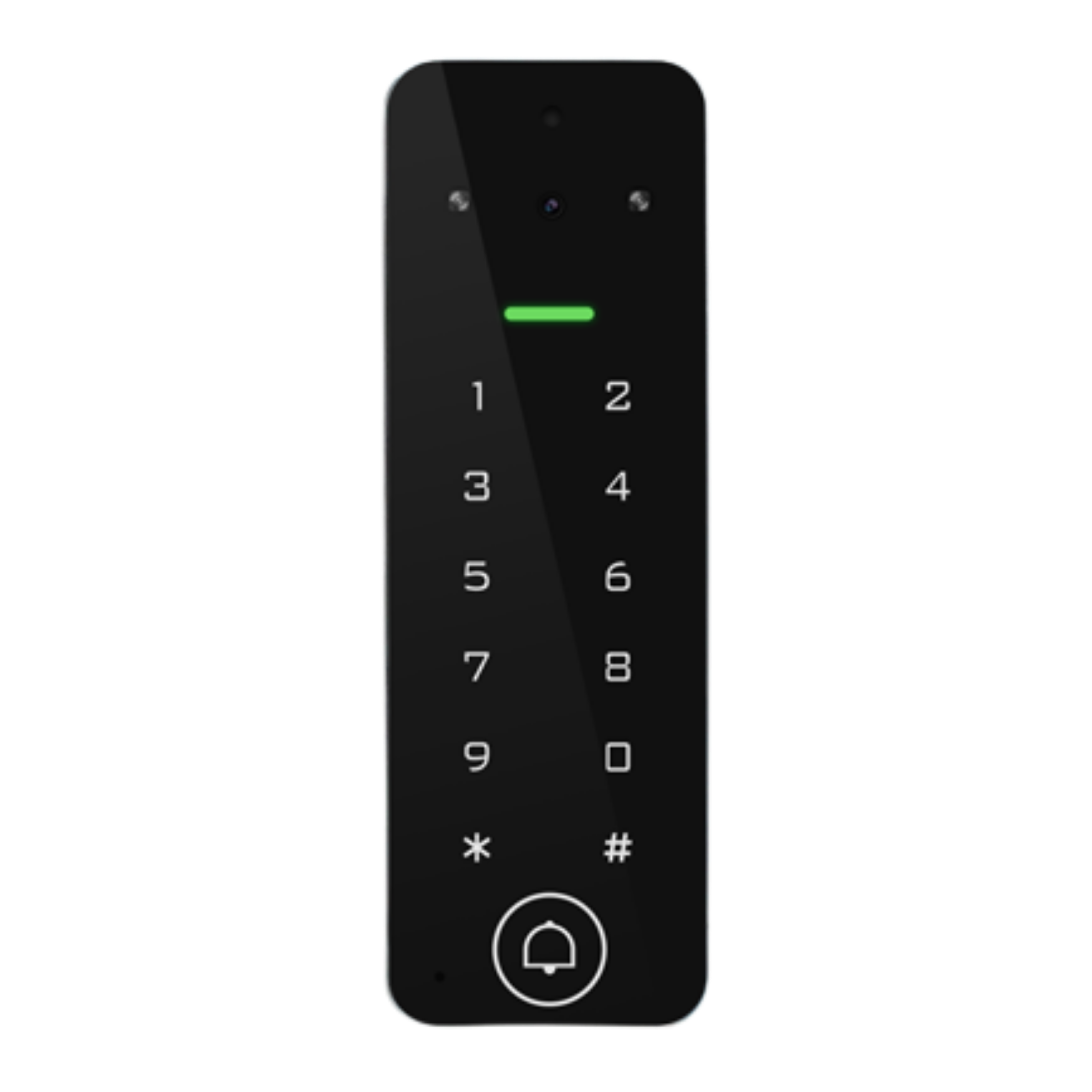

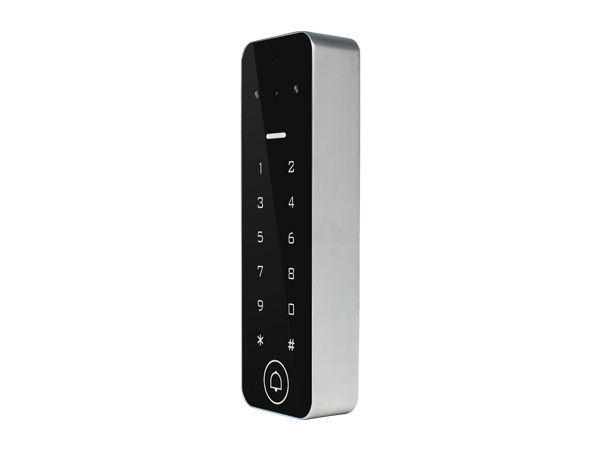

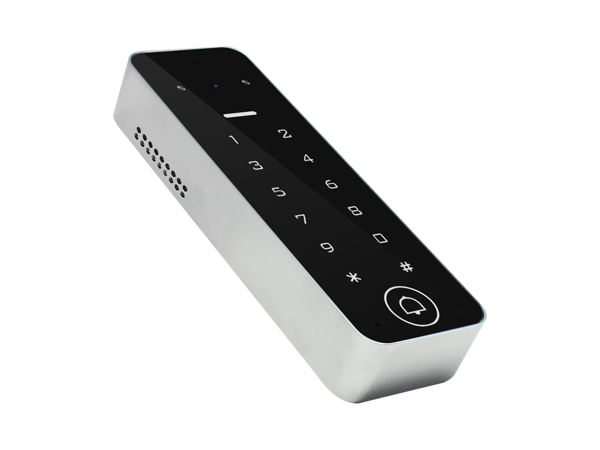

Description
The product is suitable for Small Places such as homes, independent offices, shops, warehouses, industrial parks, and other scenarios.
Main Features
• Access mode: APP, 125KHz EM card, PIN
• 125KHz EM card or 13.56MHz Mifare card optional
• 1000 User Capacity (990 common+10 visitor), 500 APP users
• Touch keypad + Touch call button
• EM card: Wiegand 26~44 bits input & output
• Mifare card: Wiegand 26-44 bits, 56bits, 58bits input & output
• Relay: 1 (NO, NC, COM)
• Interface: Relay output, Exit button, Wiegand input/output
• IP65 Waterproof
• DC 12~18V
• Physical: Zinc alloy (Metal)
• Color: Silver & Black
• Dimensions: 142 x 48 x 22 mm
Details
| Colour | Silver+Black |
|---|---|
| Material | Metal |
| Installation | Surface mount |
| Dimension (H.W.D) | 142 x 48 x 22 MM |
