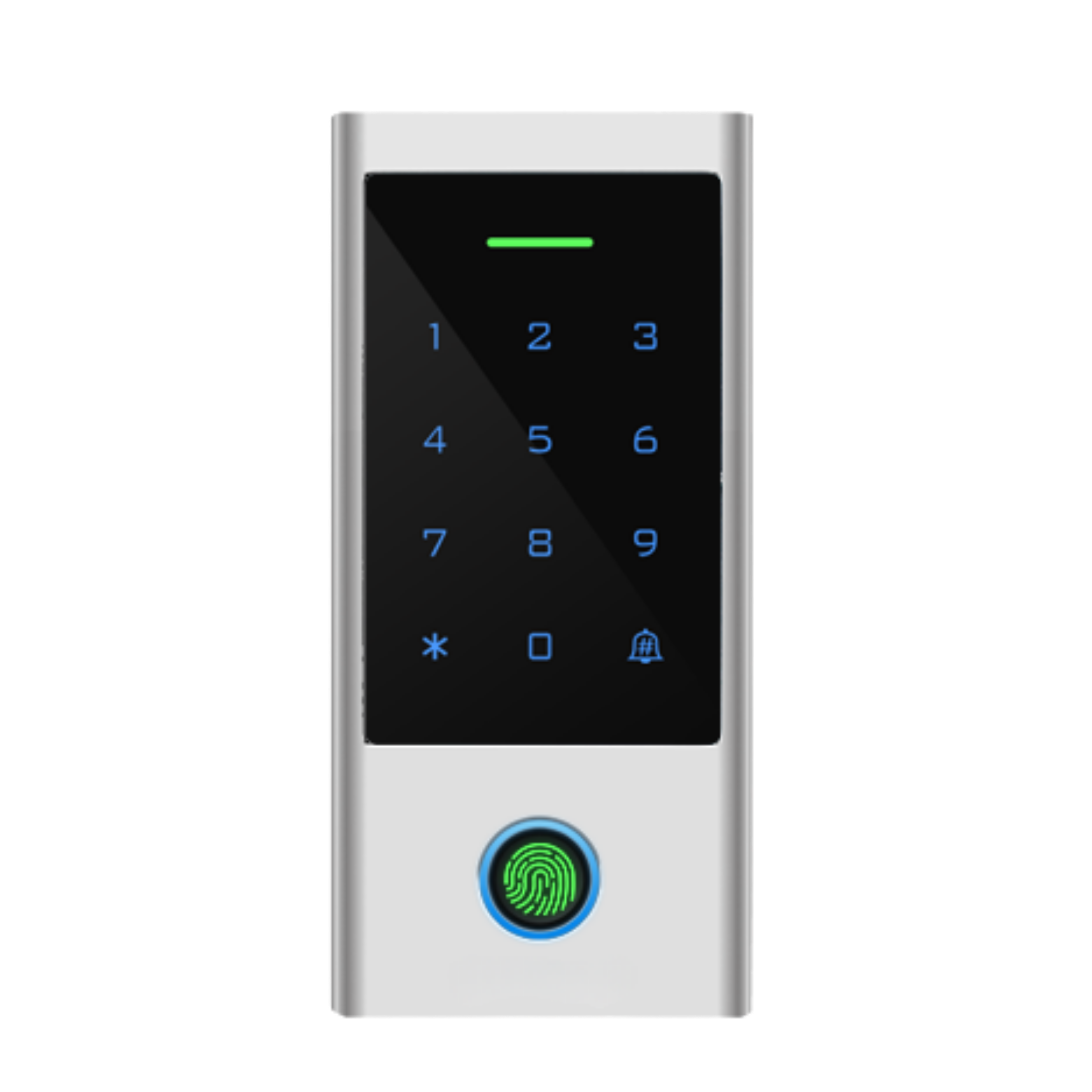

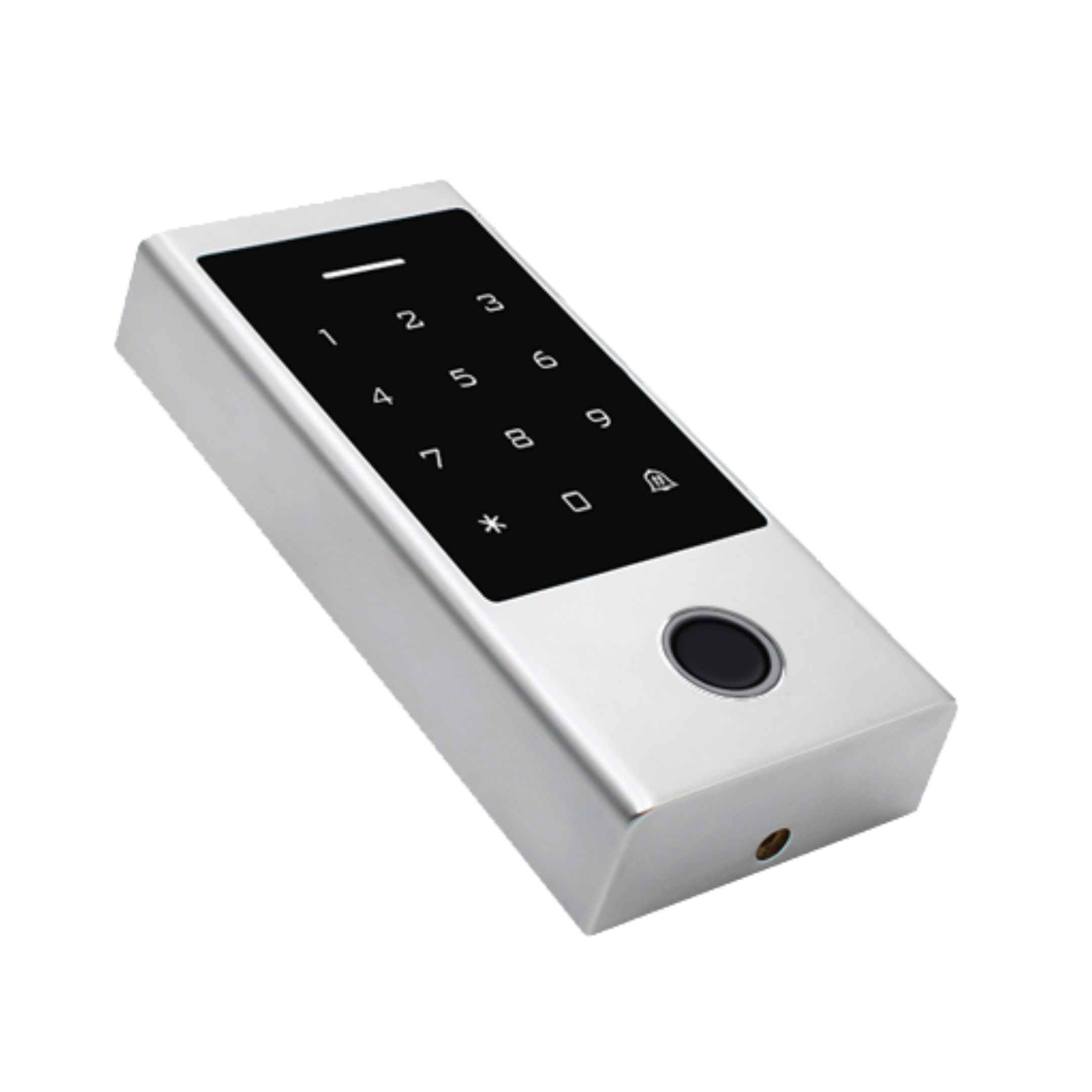

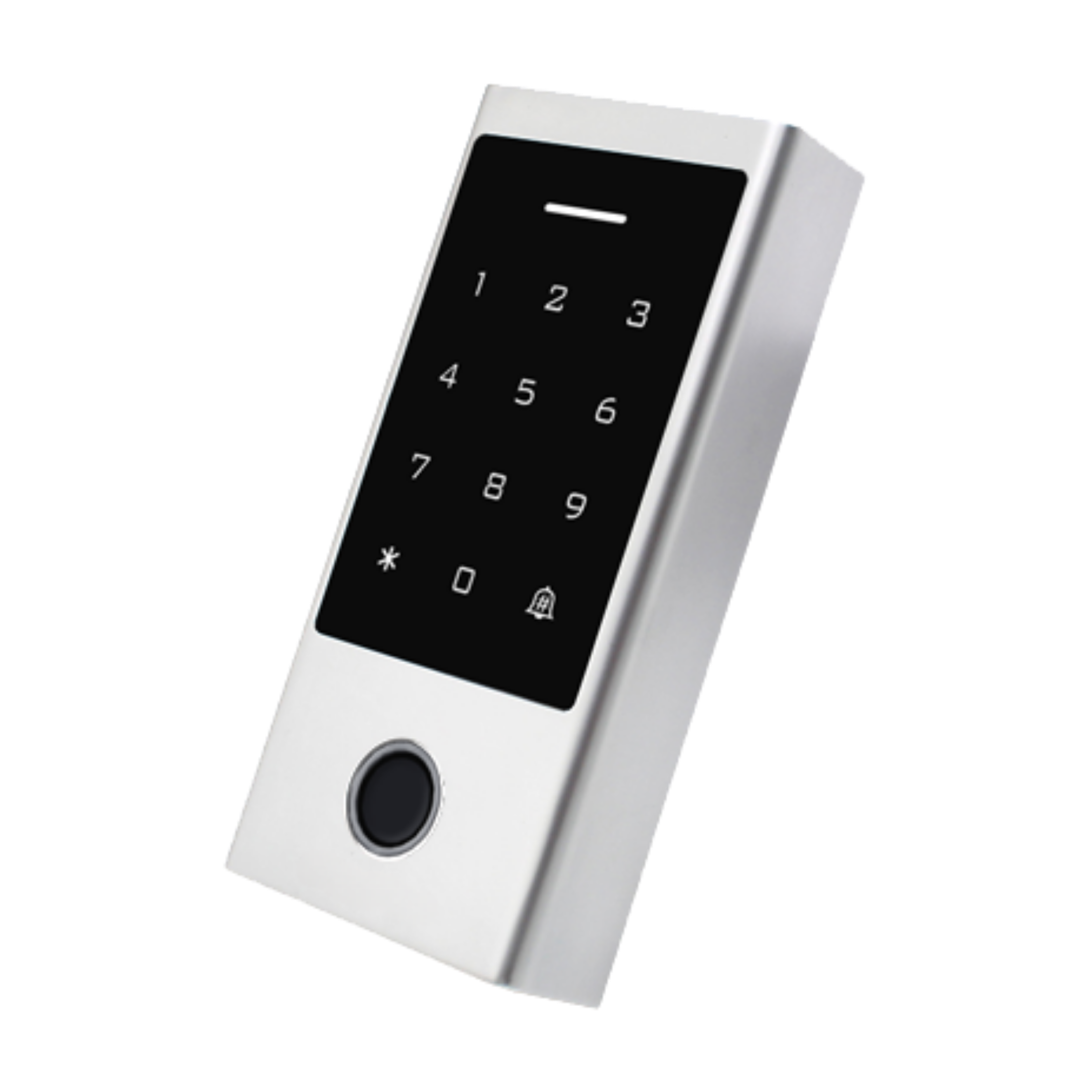

Description
The product is suitable for Small Places such as homes, independent offices, shops, warehouses, industrial parks, and other scenarios.

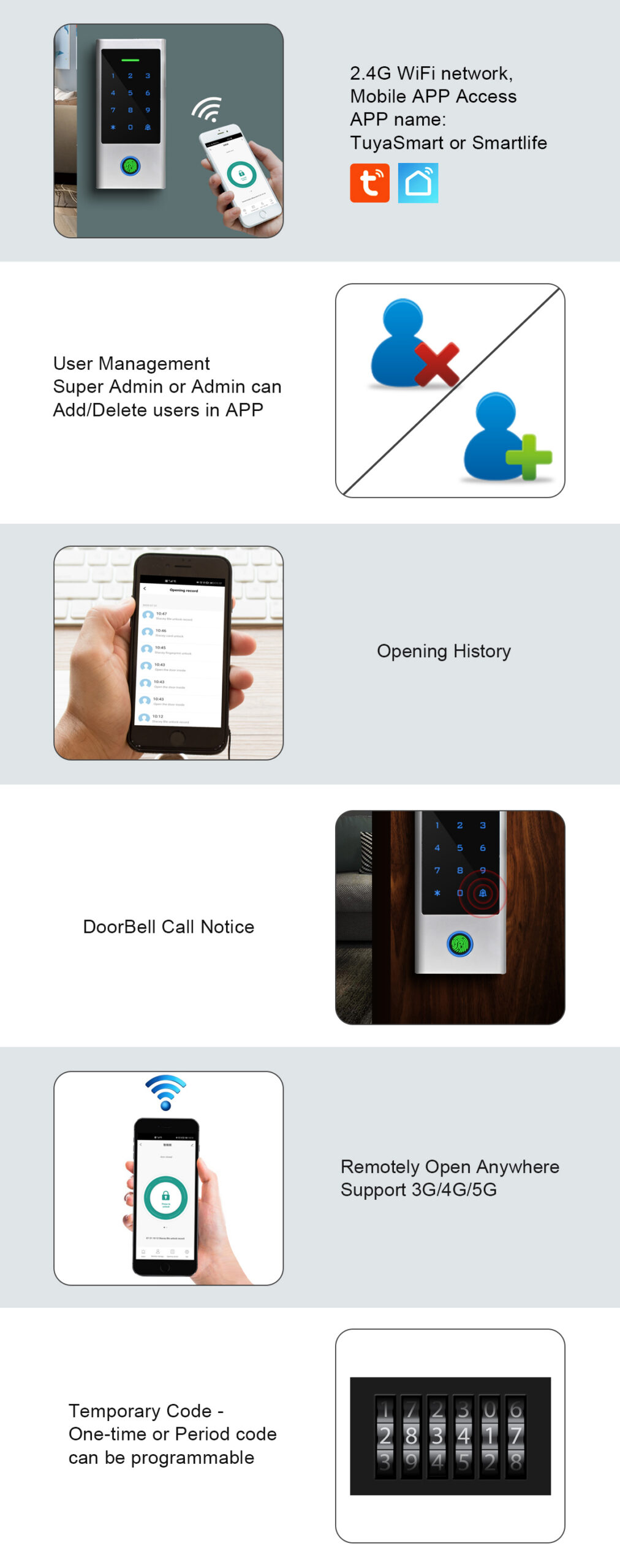

Main Features
• Access mode: APP, Fingerprint, Card, PIN
• 1000 User Capacity (988 common+2 panic+10 visitor), 500 APP users
• 100 Fingerprint Users + 888 PIN/Card Users
• Touch keypad + Capacitive fingerprint sensor
• Card type: 125KHz EM Card
• Can set time restrictions for users
• Temporary PIN (One-time or Period), 4-6 digit PIN
• Add / Delete users via the APP
• Wiegand 26~44 bits input & output
• Relay: 1 (NO, NC, COM)
• Interface: Relay output, Exit button, Alarm, Door contact, Wiegand input/output
• IP66 Waterproof
• 12~28V AC/DC
• Physical: Zinc alloy (Metal)
• Color: Silver & Black
• Dimensions: 145 x 68 x 25 mm
Details
| Colour | Silver+Black |
|---|---|
| Material | Metal |
| Installation | Surface mount |
| Dimension (H.W.D) | 145 x 68 x 25 MM |
