Description
The product is suitable for Small Places such as homes, independent offices, shops, warehouses, industrial parks, and other scenarios.
Main Features

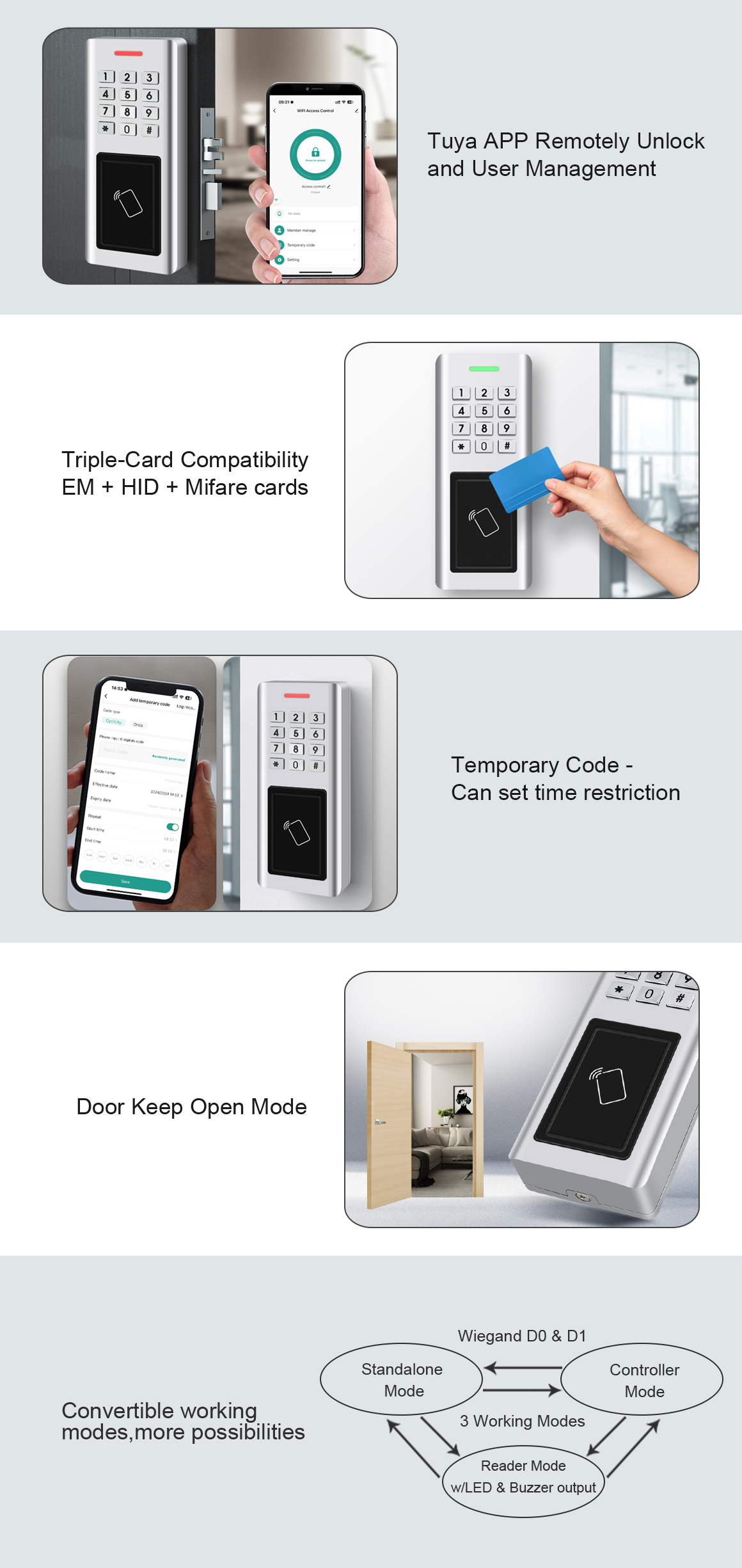

• Access mode: APP, Card, PIN
• 10000 User Capacity (9988 Common+2 panic+10 visitor), 500 APP users
• 10000 Card/PIN capacity
• Mechanical Keypad operation, Tri-color LED status display
• Card type: EM+HID+Mifare Card
• Can set time restrictions for users
• Temporary PIN (One-time or Period), 4-6 digit PIN
• Add / Delete users via the APP
• EM card: Wiegand 26~44 bits input & output
• Mifare card: Wiegand 26-44bits,56bits, 58bits input & output
• Relay: 1 (NO, NC, COM)
• Interface: Relay output, Exit button, Alarm, Door contact, Wiegand input/output
• Can be used as a Wiegand reader with LED & buzzer output
• Card block enrolment
• Integrated alarm & buzzer output
• Pulse mode, Toggle mode
• User data can be transferred (except fingerprint users)
• 2 devices can be interlocked for 2 doors
• Built-in light-dependent resistor (LDR) for anti-tamper
• IP66 Waterproof, DC 12V
• Zinc alloy (Metal), Silver & Black color
• Dimensions: 135 x 55 x 25 mm
Details
| Colour | Silver+Black |
|---|---|
| Material | Metal |
| Installation | Surface mount |
| Dimension (H.W.D) | 135 x 55 x 25 MM |
